$7,198.00

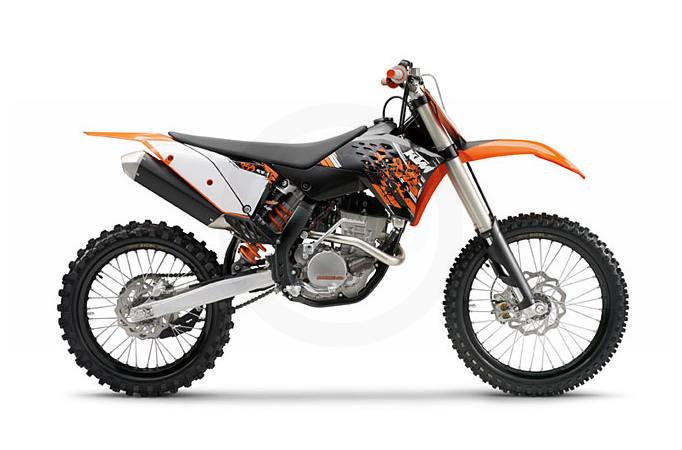

2010 KTM 250 SX-F
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The competitors riding the KTM 250 SX-F don’t need to worry about power and performance. The 250 SX-F is without a doubt the most powerful weapon on the start line. The ultra-powerful 250cc DOHC power unit redefines the class and calmly faces even the most extreme of challenges. The compact cylinder head conceals one of the secrets of the unsurpassed performance of the 250 SX-F. The two camshafts rotate in a separate, easily removable casing, enabling you to quickly adjust the valves. By enabling excellent valve lift and optimal gas flow the channels in the DLC-coated cam followers give you maximum performance.

    Engine
    • Engine type: Single cylinder, 4-stroke
    • Displacement: 248.6 cc
    • Bore x stroke: 76 x 54.8 mm (2.99 x 2.16")
    • Compression ratio: 12.8:1
    • Starter: Kickstarter
    • Transmission: 6 gears
    • Carburetor: Keihin FCR MX 39
    • Control: 4 V / DOHC with finger followers
    • Lubrication: Pressure lubrication
    • Engine lubrication: Motorex, SAE 10W50
    • Primary drive: 0.963888889
    • Final drive: 13:48
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium
    • Handlebar: Renthal, Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP PDS shock absorber
    • Suspension travel front/rear: 300 / 335 mm (11.81 / 13.19")
    • Brakes, front/rear: Disc brakes 260 / 220 mm (10.24 / 8.66")
    • Rims, front/rear: 1.60 x 21"; 2.15 x 19" Excel
    • Tires, front/rear: 80/100-21"; 100/90-19"
    • Chain: 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63.5°
    • Wheel base: 1475 ± 10 mm (58.07 ± 0.39")
    • Ground clearance (unloaded): 380 mm (15")
    • Seat height: 985 mm (38.78")
    • Tank capacity: approx. 8 liters (2.11 gal)
    • Weight (no fuel): approx. 98 kg (216 lbs)
    New Features
    • Entirely new KTM patented triple clamp design which includes a 22mm fixed off-set and overall design improvements for improved flex characteristics and optimal handling
    • Redesigned air box with a new shape that helps reduce dirt and water collection
    • New TwinAir filter
    • New brake pads
    • New Renthal ‘Diamond’ hand grips

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 248.6 cc
    Bore and Stroke 76 x 54.8 mm (2.99 x 2.16 in.)
    Cooling Liquid cooled
    Compression Ratio 12.8:1
    Ignition Kokusan
    Chassis
    Front Suspension Front suspension: WP USD 48 mm (1.89 in.); Suspension travel front/rear: 300 / 335 mm (11.81 / 13.19")
    Front Brakes Disc brakes 260 (10.24 in.)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber
    Rear Brakes Disc brakes 220 mm (8.66 in.)
    Rear Tire 100/90-19 in.
    Dimensions
    Dry Weight 98 kg (216 lbs.)
    Fuel Capacity 8 l (2.11 gal.)
    Ground Clearance 380 mm (15")
    Seat Height 985 mm (38.78")
    Rake 63.5 deg.
    Transmission
    Transmission 6 gears
    Final Drive 13:48
    General
    Warranty 1 Month

    Compare Models

    		 Print








    Year 2010
    Manufacturer KTM
    Model 250 SX-F
    Style Motocross
    MSRP* $7,198.00
    Chassis
    Front Suspension Front suspension: WP USD 48 mm (1.89 in.); Suspension travel front/rear: 300 / 335 mm (11.81 / 13.19")
    Front Brakes Disc brakes 260 (10.24 in.)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber
    Rear Brakes Disc brakes 220 mm (8.66 in.)
    Rear Tire 100/90-19 in.
    Dimensions
    Dry Weight 98 kg (216 lbs.)
    Fuel Capacity 8 l (2.11 gal.)
    Wheelbase
    Ground Clearance 380 mm (15")
    Seat Height 985 mm (38.78")
    Trail
    Rake 63.5 deg.
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 248.6 cc
    Bore and Stroke 76 x 54.8 mm (2.99 x 2.16 in.)
    Cooling Liquid cooled
    Compression Ratio 12.8:1
    Fuel System
    Ignition Kokusan
    General
    Colors
    Warranty 1 Month
    Transmission
    Transmission 6 gears
    Final Drive 13:48
