$7,998.00

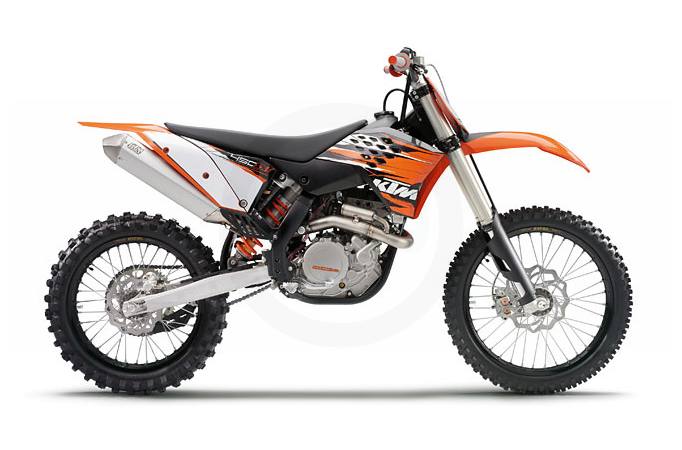

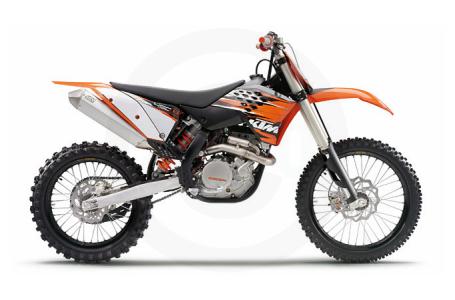

2010 KTM 450 SX-F
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

This isn’t just a bike, it’s a racing machine that is instantly the main contender on all tracks. The KTM 450 SX-F was the winner of three motocross shoot outs in 2010 thanks to its electric starter, new 5-speed gearbox, CNC-machined triple clamps, new high-level chassis, fully-adjustable 48mm USD forks with closed-cartridge technology and sophisticated tuning.


The fantastic combination of extreme power and high-precision control set the bar high for rideability. The clever electric starter is part of this bike’s true perfections. With its optimized setting, the fully adjustable PDS shock absorber from WP provides greater comfort and progression, and therefore, additional reserves under extreme loading. Premium front Brembo SXS two-piston brake caliper and light wave-type brake discs create the ultimate braking package. The new frame structure with its new geometry gives you better handling and more sensitive front wheel control. Renthal handlebar grips and handlebars come standard.

    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium
    • Handlebar: Renthal, Aluminium Ø 28/22 mm
    • Front suspension: WP-USD Ø 48 mm (1.89")
    • Rear suspension: WP PDS shock absorber
    • Suspension travel front/rear: 300 / 335 mm (11.81 / 13.19")
    • Brakes, front/rear: Disc brakes 260 / 220 mm (10.24 / 8.66")
    • Rims, front/rear: 1.6 x 21"; 2.15 x 19" Excel
    • Tires, front/rear: 80/100-21"; 110/90-19"
    • Chain: 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63,5°
    • Wheel base: 1475 ± 10 mm (58.07 ± 0.38")
    • Ground clearance (unloaded): 380 mm (14.96")
    • Seat height: 985 mm (38.78")
    • Tank capacity: approx. 8 liters (2.11 gal.)
    • Weight (no fuel): approx. 104.6 kg (230.6 lbs.)
    New Features
    • New 5-speed transmission for a broader range of track conditions
    • Titanium exhaust pipe now includes Header Pipe Resonator System (HPRS) that helps improve power and reduce sound
    • New carburetor setting for improved low-end power delivery
    • Reinforced piston for extended durability
    • DLC coating on the crankshaft for extended durability.
    • New frame design that rotates the engine forward slightly and lowers the tank and seating position for improved weight balance, less deflection on the front end, better control of front wheel and an overall lighter feeling
    • Entirely new KTM patented triple clamp design which includes a 22mm fixed off-set and overall design improvements for improved flex characteristics and optimal handling
    • Shortened rear shock (-4mm) to work in-conjunction with the new frame
    • New Brembo SXS front brake caliper with new compound pads for industry leading brake power and feel
    • Redesigned air box with a new shape that helps reduce dirt and water collection
    • New TwinAir filter
    • New brake pads
    • New Renthal ‘Diamond’ hand grips
    Engine
    • Engine type: Single cylinder, 4-stroke
    • Displacement: 449.3 cc
    • Bore x stroke: 97 x 60,8 mm (3.82 x 2.39")
    • Compression ratio: 12.5:1
    • Starter: E-Starter/12 V 4 Ah
    • Transmission: 4 gears
    • Carburetor: Keihin FCR-MX 41
    • Control: 4 V / DOHC with finger followers
    • Lubrication: Pressure lubrication
    • Engine lubrication: Motorex, SAE 10W50
    • Primary drive: 29:74
    • Final drive: 14 : 52
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 449.3 cc
    Bore and Stroke 97 x 60,8 mm (3.82 x 2.39")
    Cooling Liquid cooled
    Compression Ratio 12.5:1
    Ignition Kokusan
    Chassis
    Front Suspension WP USD 48 mm (1.89")
    Front Brakes Disc brakes 260 (10.24 in.)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber
    Rear Brakes Disc brakes 220 mm (8.66 in.)
    Rear Tire 110/90-19 in.
    Dimensions
    Dry Weight approx. 104.6 kg (230.6 lbs)
    Fuel Capacity 8 l (2.11 gal.)
    Wheelbase 1475 ± 10 mm (58.07 ± 0.39")
    Ground Clearance 380 mm (14.96")
    Seat Height 985 mm (38.78")
    Rake 63.5°
    Transmission
    Transmission 4 gears
    Final Drive 14:52

    Compare Models

    		 Print








    Year 2010
    Manufacturer KTM
    Model 450 SX-F
    Style Motocross
    MSRP* $7,998.00
    Chassis
    Front Suspension WP USD 48 mm (1.89")
    Front Brakes Disc brakes 260 (10.24 in.)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber
    Rear Brakes Disc brakes 220 mm (8.66 in.)
    Rear Tire 110/90-19 in.
    Dimensions
    Dry Weight approx. 104.6 kg (230.6 lbs)
    Fuel Capacity 8 l (2.11 gal.)
    Wheelbase 1475 ± 10 mm (58.07 ± 0.39")
    Ground Clearance 380 mm (14.96")
    Seat Height 985 mm (38.78")
    Trail
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 449.3 cc
    Bore and Stroke 97 x 60,8 mm (3.82 x 2.39")
    Cooling Liquid cooled
    Compression Ratio 12.5:1
    Fuel System
    Ignition Kokusan
    General
    Colors
    Warranty
    Transmission
    Transmission 4 gears
    Final Drive 14:52
