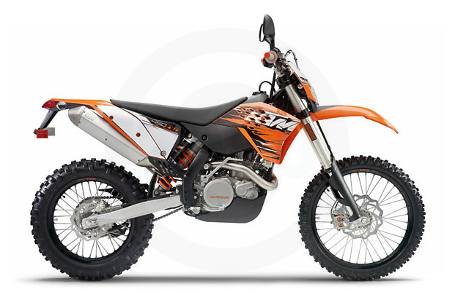

2010 KTM 450 EXC Champions Edition
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

This KTM dual-sport machine uses ultra-modern technology in both the chassis and the SOHC engine which further perfects one of the most successful street legal enduro race bikes on the market. The ultralight cast aluminum swingarm with directly connected PDS shock absorber ensures optimum flexibility, which results in enormous traction and comfort. The new frame is made from the best chromoly steel with massive oversized oval side tubes resulting in a light and stable frame.

  • Engine: Single cylinder, 4-stroke
  • Displacement: 449.3 cc
  • Weight: 113.9 kg (251 lbs.)
Engine
  • Engine type: Single cylinder, 4-stroke
  • Displacement: 449.3 cc
  • Bore x stroke: 95 x 63.4 mm (3.74 x 2.5")
  • Compression ratio: 11.9:1
  • Starter/Battery: Kickstarter/E-Starter/12V 4 Ah
  • Transmission: 6 gears
  • Carburetor: Keihin FCR MX 39
  • Control: 4 V/OHC with rocker levers
  • Lubrication: Pressure lubrication with 3 Eaton pumps
  • Engine lubrication: Motorex, SAE 10W50
  • Transmission oil: Motorex, SAE 10W50
  • Primary drive: 33:76
  • Final drive: 15:45 (14:52)
  • Cooling: Liquid cooled
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Ignition: Kokusan
Chassis
  • Frame: Central double-cradle-type 25CrMo4 steel
  • Subframe: Aluminium
  • Handlebar: Neken, Aluminium Ø 28/22 mm (1.10/0.87")
  • Front suspension: WP USD Ø 48 mm (1.89")
  • Rear suspension: WP PDS shock absorber
  • Suspension travel front/rear: 300/335 mm (11.81/13.19")
  • Brakes, front/rear: Disc brakes 260/220 mm (10.24/8.66")
  • Rims, front/rear: 1.60 x 21"; 2.15 x 18" Excel
  • Tires, front/rear: 90/90-21"; 140/80-18"
  • Chain: X-ring chain 5/8 x 1/4"
  • Main silencer: Aluminium
  • Steering head angle: 63.5°
  • Wheel base: 1475 ± 10 mm (58.0 ± 0.39")
  • Ground clearance (unloaded): 380 mm (15")
  • Seat height: 985 mm (38.78")
  • Tank capacity: approx. 9.5 liters (2.51 gal)
  • Weight (no fuel): approx. 113.9 kg (251 lbs)
New Features
  • Reinforced gearbox for improved durability
  • Reworked chain tensioner and chain guide
  • Nitrate hardened compression ring and new design oil control ring
  • New frame design that rotates the engine forward slightly and lowers the tank and seating position for improved weight balance, less deflection on the front end, better control of front wheel and an overall lighter feeling
  • New suspension valving and PDS needle design to provide damping slightly earlier in the suspension stroke for a more progressive feel
  • New brake master cylinder and Brembo front brake caliper along with new brake pads for awesome performance and progressive stopping power
  • Redesigned air box with a new shape that helps reduce dirt and water collection
  • New TwinAir filter
  • New translucent fuel tank allowing the rider to easily check the fuel level
  • New DID 520 VT2 X-ring chain for less friction and improved durability
  • New lighter Excel rims
  • New Renthal ‘Diamond’ hand grip

Specifications

Engine
Engine Type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore and Stroke 95 x 63.4 mm (3.74 x 2.5 in.)
Cooling Liquid cooled
Compression Ratio 11.9:1
Ignition Kokusan
Chassis
Front Suspension WP USD 48 mm (1.89")
Front Brakes Disc brakes 260 mm (10.24 in.)
Front Tire 90/90-21 in.
Rear Suspension WP PDS shock absorber
Rear Brakes Disc brakes 220 mm (8.66 in.)
Rear Tire 140/80-18"
Dimensions
Dry Weight 113.9 kg (251 lbs.)
Fuel Capacity 9.5 l (2.51 gal)
Wheelbase 1475 ± 10 mm (58.0 ± 0.39 in.)
Seat Height 985 mm (38.78 in.)
Rake 63.5 deg.
Transmission
Transmission 6 gears
Final Drive 15:45 (14:52)
General
Warranty 6 Month or 10,000 km

Compare Models

 Print








Year 2010
Manufacturer KTM
Model 450 EXC Champions Edition
Style Dual Sport
MSRP* $9,198.00
Chassis
Front Suspension WP USD 48 mm (1.89")
Front Brakes Disc brakes 260 mm (10.24 in.)
Front Tire 90/90-21 in.
Rear Suspension WP PDS shock absorber
Rear Brakes Disc brakes 220 mm (8.66 in.)
Rear Tire 140/80-18"
Dimensions
Dry Weight 113.9 kg (251 lbs.)
Fuel Capacity 9.5 l (2.51 gal)
Wheelbase 1475 ± 10 mm (58.0 ± 0.39 in.)
MPG
Seat Height 985 mm (38.78 in.)
Trail
Rake 63.5 deg.
Engine
Engine Type Single cylinder, 4-stroke
Displacement 449.3 cc
Bore and Stroke 95 x 63.4 mm (3.74 x 2.5 in.)
Cooling Liquid cooled
Compression Ratio 11.9:1
Fuel System
Ignition Kokusan
General
Speedometer
Tachometer
Odometer
Colors
Warranty 6 Month or 10,000 km
Transmission
Transmission 6 gears
Final Drive 15:45 (14:52)
