$8,998.00

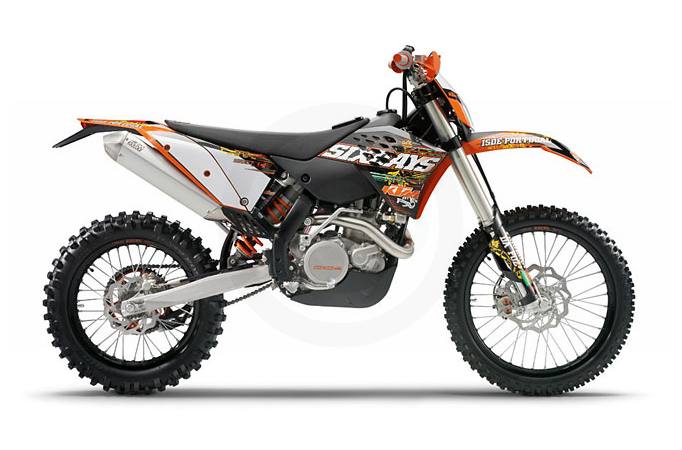

2010 KTM 530 XC-W Sixdays
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

These special editions are fitted with every detail necessary for top competition straight from KTM. They feature: exclusive Six Days graphics, Enduro Racing headlight, tail light, quick-release plastic skid plate, Selle Dalla Valle Italian seat with card holder, radiator cooling fan, Stealth orange chain sprocket, front axle pull, handlebar pad, fork bleeder valves and rear brake retaining pin.

  • Engine: Single cylinder, 4-stroke, SOHC, 4 valves
  • Displacement: 510.4 cc
  • Weight: 112.2 kg (247.36 lbs.)
Engine
  • Engine type: Single cylinder, 4-stroke, SOHC, 4 valves
  • Displacement: 510.4 cc
  • Bore x stroke: 95 x 72 mm (3.74 x 2.83")
  • Compression ratio: 11.9:1
  • Starter/Battery: Kickstarter/E-Starter/12 V 4 Ah
  • Transmission: 6 gears wide-ratio
  • Carburetor: Keihin FCR-MX 39
  • Control: 4 V/OHC with roller rocker levers
  • Lubrication: Pressure lubrication with 2 Eaton pumps
  • Engine lubrication: Motorex, SAE 10W50
  • Primary drive: 33:76
  • Final drive: 13:50
  • Cooling: Liquid cooled
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Ignition: Kokusan
Chassis
  • Frame: Central double-cradle-type 25CrMo4
  • Subframe: Aluminium, removable
  • Handlebar: Neken Aluminium Ø 28/22 mm (1.10/0.87")
  • Front suspension: WP USD Ø 48 mm (1.89")
  • Rear suspension: WP monoshock PDS
  • Suspension travel front/rear: 300/335 mm (11.81/13.19")
  • Front brake: 260 mm (10.24") disc, Brembo double piston
  • Rear brake: 220 mm (8.66") disc, Brembo single piston
  • Rims, front/rear: 1.60 x 21"; 2.15 x 18"
  • Tires, front/rear: 80/90-21"; 110/100-18"
  • Chain: X-ring chain 5/8 x 1/4"
  • Main silencer: Aluminium w/USFS spark arrestor
  • Steering head angle: 63.5°
  • Trail: Adjustable
  • Wheel base: 1475±10 mm (58.07±0.39")
  • Ground clearance (unloaded): 380 mm (15")
  • Seat height: 985 mm (38.78")
  • Tank capacity: approx. 9.2 liters (2.43 gal)
  • Weight (no fuel): approx. 112.2 kg (247.36 lbs)
New Engine Features
  • Reinforced gearbox for improved durability
  • Reworked chain tensioner and chain guide
  • Nitrate hardened compression ring and new design oil control ring
New Chassis Features
  • New frame design that rotates the engine forward slightly and lowers the tank and seating position for improved weight balance, less deflection on the front end, better control of front wheel and an overall lighter feeling
  • New suspension valving and PDS needle design to provide damping slightly earlier in the suspension stroke for a more progressive feel-
  • New brake master cylinder and Brembo front brake caliper along with new brake pads for awesome performance and progressive stopping power
  • Redesigned air box with a new shape that helps reduce dirt and water collection
  • New TwinAir filter
  • New DID 520 VT2 X-ring chain for less friction and improved durability
  • New lighter Excel rims
  • New Renthal ‘Diamond’ hand grip

Specifications

Engine
Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 510.4 cc
Bore and Stroke 95 x 72 mm (3.74 x 2.83")
Cooling Liquid cooled
Compression Ratio 11.9:1
Ignition Kokusan
Chassis
Front Suspension WP USD 48 mm (1.89")
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/90-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.66 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 112.2 kg (247.36 lbs.)
Fuel Capacity 9.2 l (2.43 gal.)
Wheelbase 1475±10 mm (58.07±0.39 in.)
Ground Clearance 380 mm (15 in.)
Seat Height 985 mm (38.78 in.)
Trail Adjustable
Rake 63.5 deg.
Transmission
Transmission 6 gears wide-ratio
Final Drive 13:50

Compare Models

 Print








Year 2010
Manufacturer KTM
Model 530 XC-W Sixdays
Style Motocross
MSRP* $8,998.00
Chassis
Front Suspension WP USD 48 mm (1.89")
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/90-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.66 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 112.2 kg (247.36 lbs.)
Fuel Capacity 9.2 l (2.43 gal.)
Wheelbase 1475±10 mm (58.07±0.39 in.)
Ground Clearance 380 mm (15 in.)
Seat Height 985 mm (38.78 in.)
Trail Adjustable
Rake 63.5 deg.
Engine
Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 510.4 cc
Bore and Stroke 95 x 72 mm (3.74 x 2.83")
Cooling Liquid cooled
Compression Ratio 11.9:1
Fuel System
Ignition Kokusan
General
Colors
Warranty
Transmission
Transmission 6 gears wide-ratio
Final Drive 13:50
